Suzhou Bailian Heavy Industry Co., Ltd.

Suzhou Bailian Heavy Industry Co., Ltd. was established in 1996, is a professional engaged in metallurgical machinery, processing hydrogen energy industry technology development and industrialization involving hydrogen production and hydrogen energy application of the whole industrial chain supporting processing and services, chemical engineering equipment design and manufacturing company.

It has successively won the honorary titles of National Postdoctoral Research Workstation, National Torch Program Project, National High-tech Enterprise, Jiangsu Enterprise Technology Center, Jiangsu Engineering Technology Research Center, Jiangsu Private Science and Technology Enterprise, Jiangsu Innovative Small and medium-sized Enterprise, Jiangsu Advanced Unit of Science and Technology Innovation, and Suzhou Enterprise with property right advantage.

With first-class office environment and production workshop, the company is mainly engaged in the design and manufacture of special machinery and equipment for steel smelting, committed to the research and development of imported products, and expand to the core equipment for hydrogen production (electrolytic cell bipolar plate). The company is equipped with first-class production equipment, standard R & D and experimental center, to provide reliable data verification for products, the company has passed the IS09001:2008 quality management system, IS014001:2004 environmental management system, GB/T28001-2001 occupational health and safety management system.

The company has applied for 147 patents, and the total number of patent applications is one of the enterprises with the largest number of patents in metallurgical equipment in the country. Currently, there are 47 effective patents, including 9 independent research and development authorized invention patents and 38 utility model patents. 2 valid trademarks, 2 software Copyrights.

The plate is the core equipment of alkaline electrolyzer

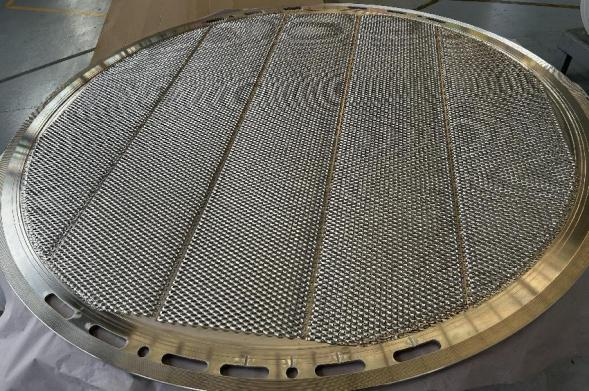

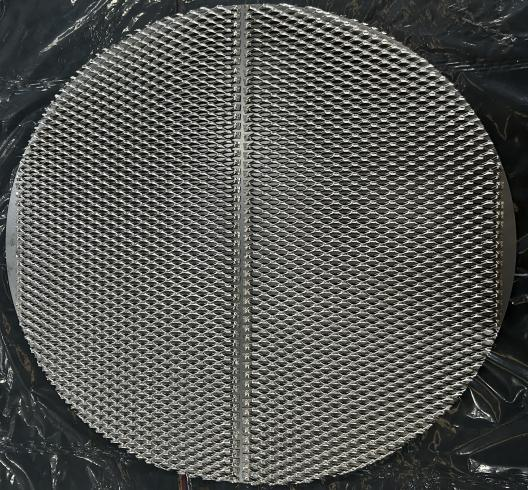

The processing and manufacturing process of the plate is as follows: 1. Processing of the main plate (mastoid plate, nickel mesh); 2. Processing of pole frame; 3. Welding of main plate and pole frame; 4. Plate overall nickel plating; 5. Detection of plate coating.

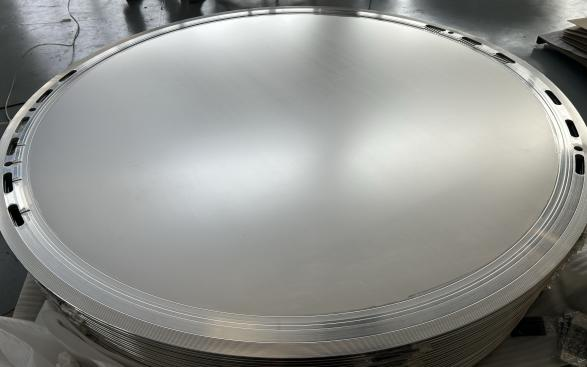

The pole frame is made of carbon steel material base material by coil material, and then the tongue plate, liquid channel hole, liquid flow channel, airway hole and flow channel, positioning hole, sealing water line and other structures are processed on the pole frame.

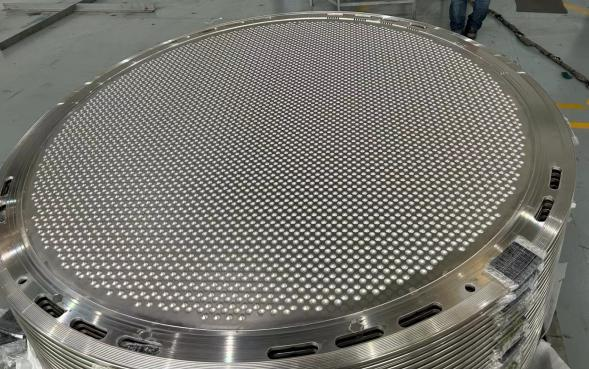

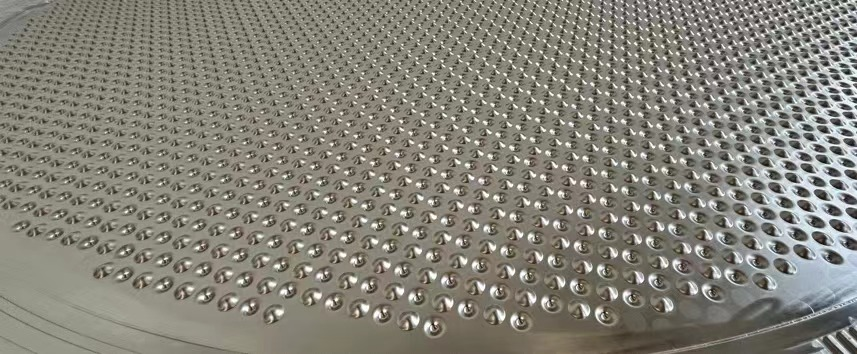

Taking mastoid plate as an example, the raw material of the main plate is carbon steel (thickness is about 2mm), and the mastoid structure is manufactured on the main plate by stamping the die.

After processing the main plate and the pole frame respectively, the pole frame and the main plate are welded together through the tongue plate of the pole frame to form an integrated plate.

In the process of alkaline electrolytic water hydrogen production, 30wt%KOH solution is generally used as the electrolyte, and the temperature of the electrolyte is about 80-90℃. However, such a temperature and alkali concentration is just within the range of the carbon steel main plate prone to alkali corrosion. Therefore, it is necessary to carry out anti-corrosion treatment on the carbon plate of the electrolytic cell. At present, nickel-plated carbon steel mastoid plate is usually used to reduce corrosion, and electrochemical plating is currently used for overall nickel plating on the plate.
