JIANGSU LEAD HYDROGEN INTELLIGENT EQUIPMENT CO.,LTD

Established in 2021, LHI is a wholly-owned subsidiary of Wuxi Lead Intelligent Equipment Co., Ltd. and is committed to providing turnkey solutions for production line on hydrogen fuel cell and PEM electrolyzer and enabling global fuel cell industrialization. The provided production line solutions include: Upstream material production line - PEM coating equipment, GDL production line, carbon paper production line; production equipment - slurry manufacturing and coating, membrane electrode package, bipolar plate whole line integration, stack assembly and system line; testing equipment -High power stack test platform, high power system test platform and endurance test stand, etc.
Relying on its strong R&D, manufacturing and comprehensive service capabilities, LHI is able to provide customers with production process validation and equipment for lab line, pilot line and production line, and has already provided automatic fuel cell production lines for well-known domestic and foreign customers.

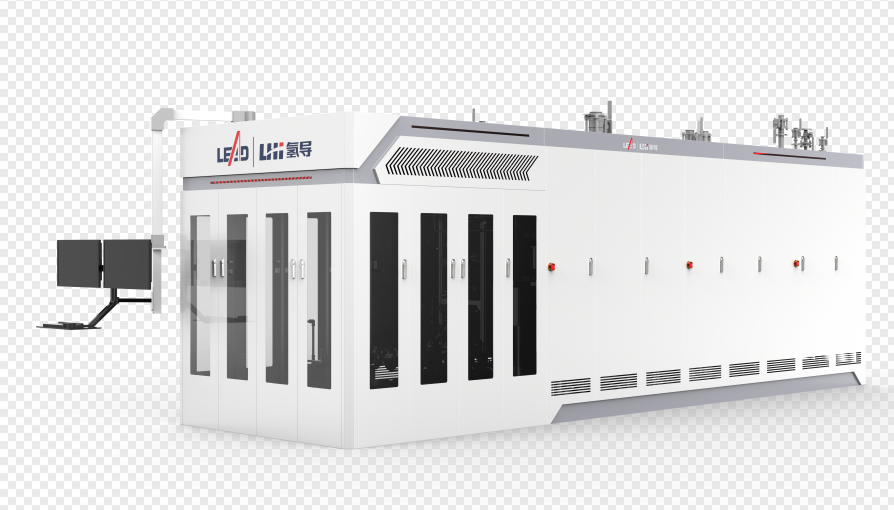

(CCM ANODE COATING MACHINE)

The narrow slot extrusion coating method, special vacuum adsorption and in-situ drying technology are used to inhibit the swelling of the anode coating film and realize the direct coating of the anode catalyst layer.

1. Cost reduction   Optimization of process, direct coating of anode, no additional process film, cost saving

2. Strong compatibility   Compatible with intermittent coating, continuous coating and two lane coating

3. High speed   Coating speed 0.6~3m/min

4. High precision  Coating size accuracy ± 0.5mm; Alignment ± 0.5mm; Thickness uniformity ≤± 10%

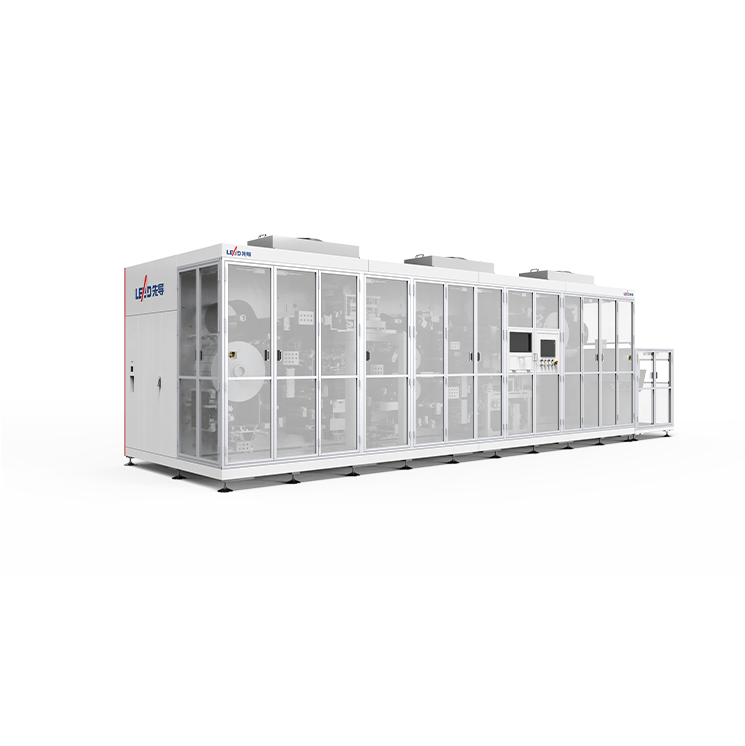

(CCM & S-G(5-LAYER) ASSEMLY MACHINE)

1. High beat, continuous high-speed flying cutting insert technology

2. High speed roll cutting phase control technology, closed-loop cutting control cutting quality

3. New generation of optimal attitude correction algorithm, real-time calculation of deviation

4. New PID algorithm, more accurate tension control

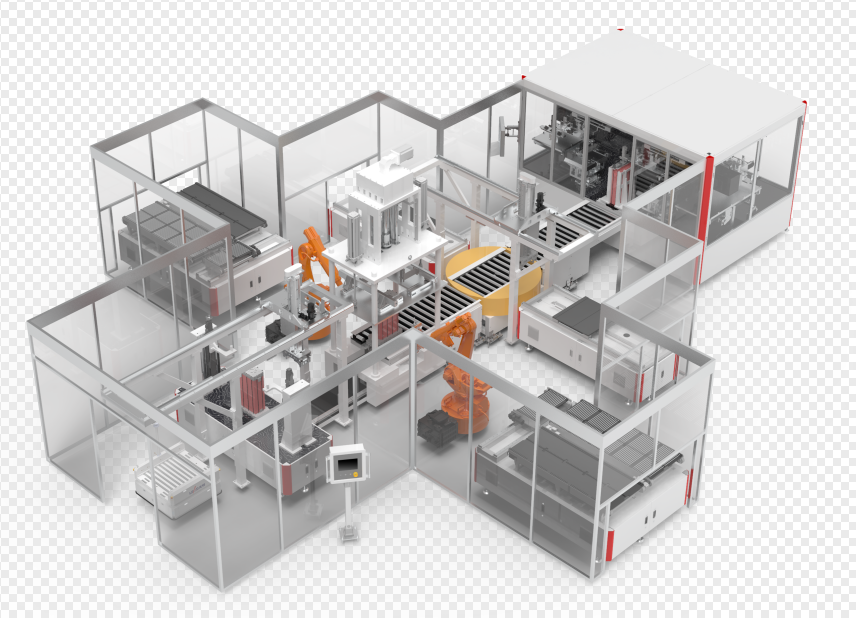

(stack assembly)

1．The production line is fully automatic,without manual intervention;

2.  Adopt special optimized structure sucker to deal with MEA

and bipolar plate absorption;

3. High stacking efficiency and alignment accuracy;

4. Press can accurately monitor the pressing force and gap;

5. Air tightness detection strategy optimization,detection time is short,high accuracy.

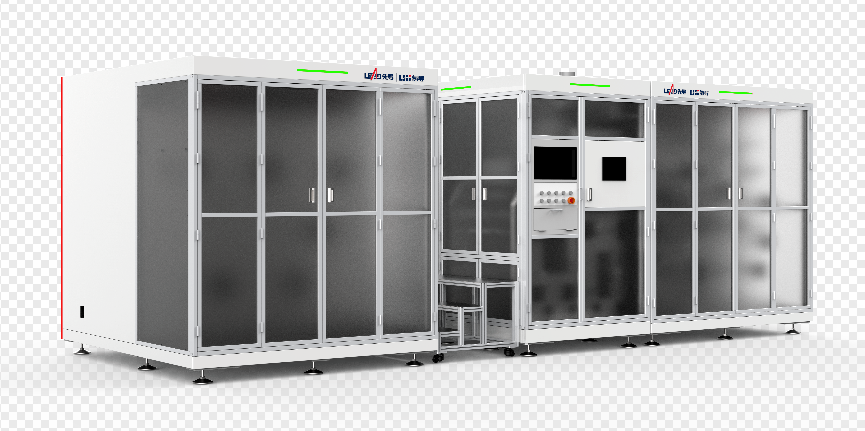

(high power stack test station)

1. High safety  Dual protection via hardware and software, multi-level security protection strategy

2. High precision   Dew point control accuracy Steady state ≤± 1 ℃, temperature control accuracy ≤± 1 ℃

3. Rapid response  Pressure response speed: 2 ～ 20kPa/s,Rapid humidity adjustment for dry and wet mixing, response time ≤ 10s
